FK 5 - Single and double laminar sealing rings

for roller bearings of continuous casting plants, steam turbines and power units

Anwendung FK5 Einfach- und Doppel-Lamellen-Dichtungsringe

Single and double wound laminar sealing rings are used for sealing the roller and plain bearings on the segments rolls for continuous casting plants, industrial steam turbines, mobile and stationary power units. Basically everywhere the sealing system must meet severe requirements due to extreme operating conditions.

This includes corrosion or media resistance of the ring material, high operating temperatures and high contamination levels.

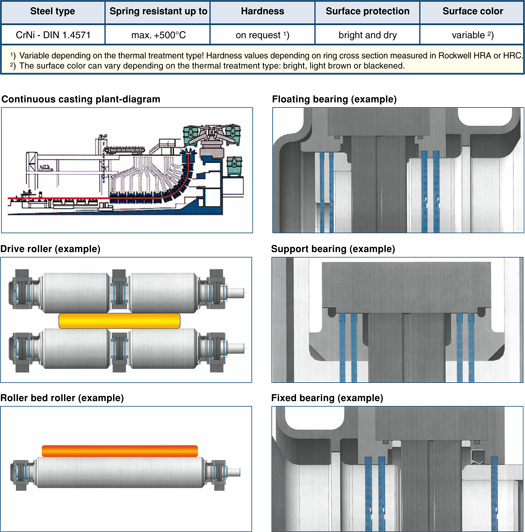

Ring materials

Installation information:

Click here.

Order information:

The ring diameter information must match the housing or bore diameter dimensions “D1″ for all inquiries and/or orders. The rings can be ordered individually or in sets (1 set = 3 AS rings).

Run and installation tests:

Run and installation tests under operating conditions must be performed in each case before standard production of our laminar rings can begin to determine whether the desired sealing effects can be achieved.
